Constant hanger terminology
Constant spring hangers are spring-based pipe supports designed to accommodate vertical movement while maintaining an approximately constant supporting load. Engineering catalogues also use constant support hangers and constant effort supports. This page covers the suspended MA series; the base-mounted series and lever-type hangers have separate configurations. Similar terminology does not establish dimensional or performance interchangeability.

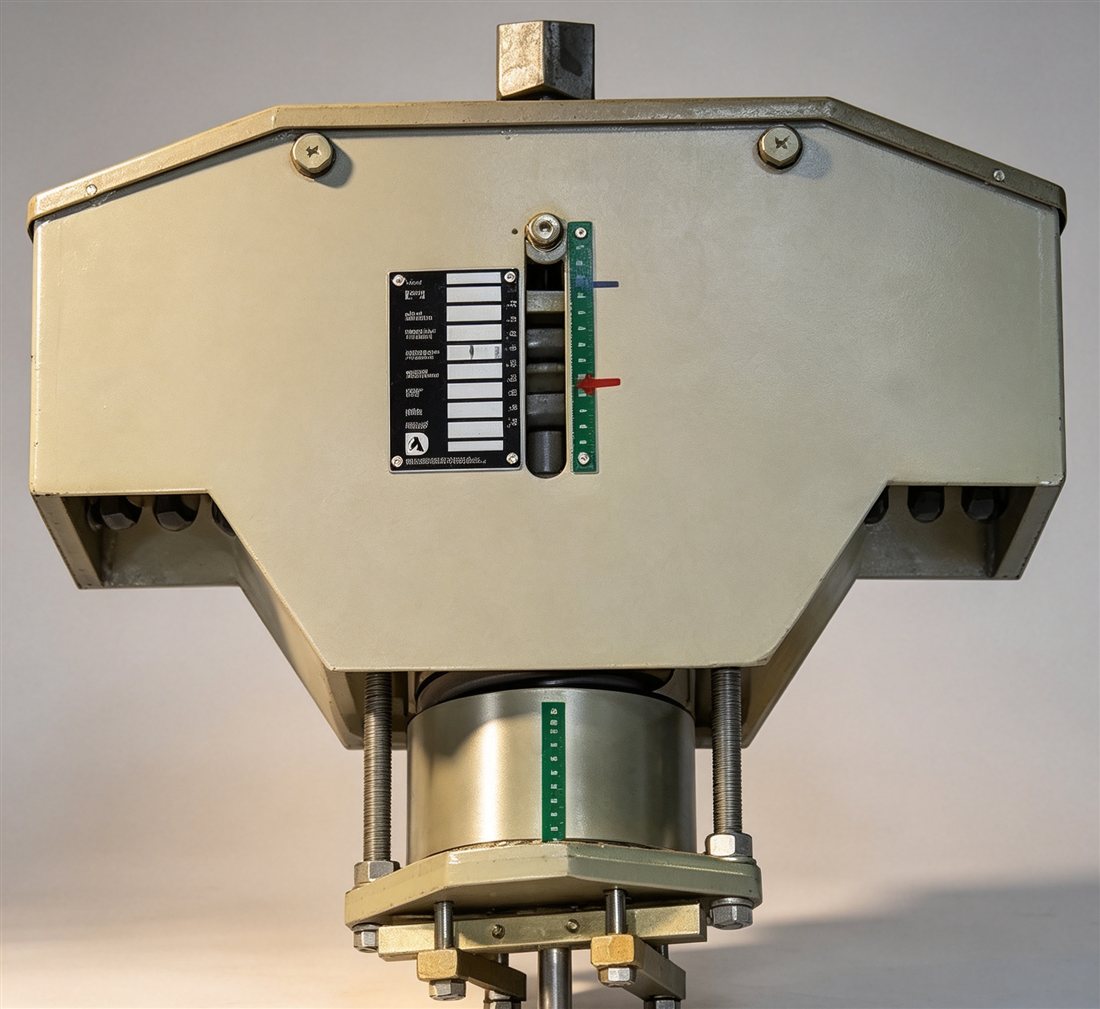

Construction — main & auxiliary spring mechanism

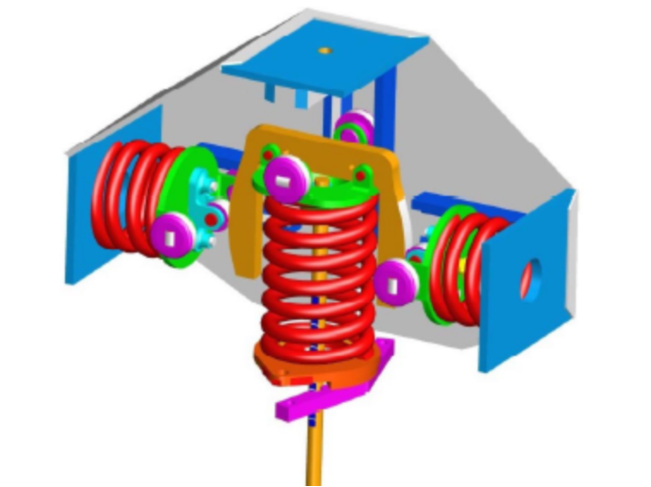

The MA-Series replaces the conventional lever-and-cam linkage with a main vertical spring working against a matched auxiliary spring group in a rigid housing, supplied as hanger-suspended (this page) or base-mounted constant supports, with load adjustment and travel scale. Each unit is bench-tested and locked at the cold position before dispatch.
- Load deviation ≤3% across the full travel range, verified on the load–travel test bench (MSS SP-58 limit: 6%)
- Dual-axis behaviour — vertical constant support plus lateral damping from the auxiliary spring group
- Travel up to 300 mm and above for special cases
- Adjustment allowance typically ±10% of design load
- Hydrotest stops and transport locks fitted as standard
How it works — and why it beats the linkage design
In a lever-linkage constant hanger (the conventional lever-and-cam layout most suppliers build), constancy depends on cam geometry approximating a curve — the supporting force is near-constant, and wear at the pivots erodes even that. The MA mechanism takes a different route: the auxiliary springs generate a force component that mirrors the main spring's deviation, and the superposition of the two is constant by mathematics, not by approximation.

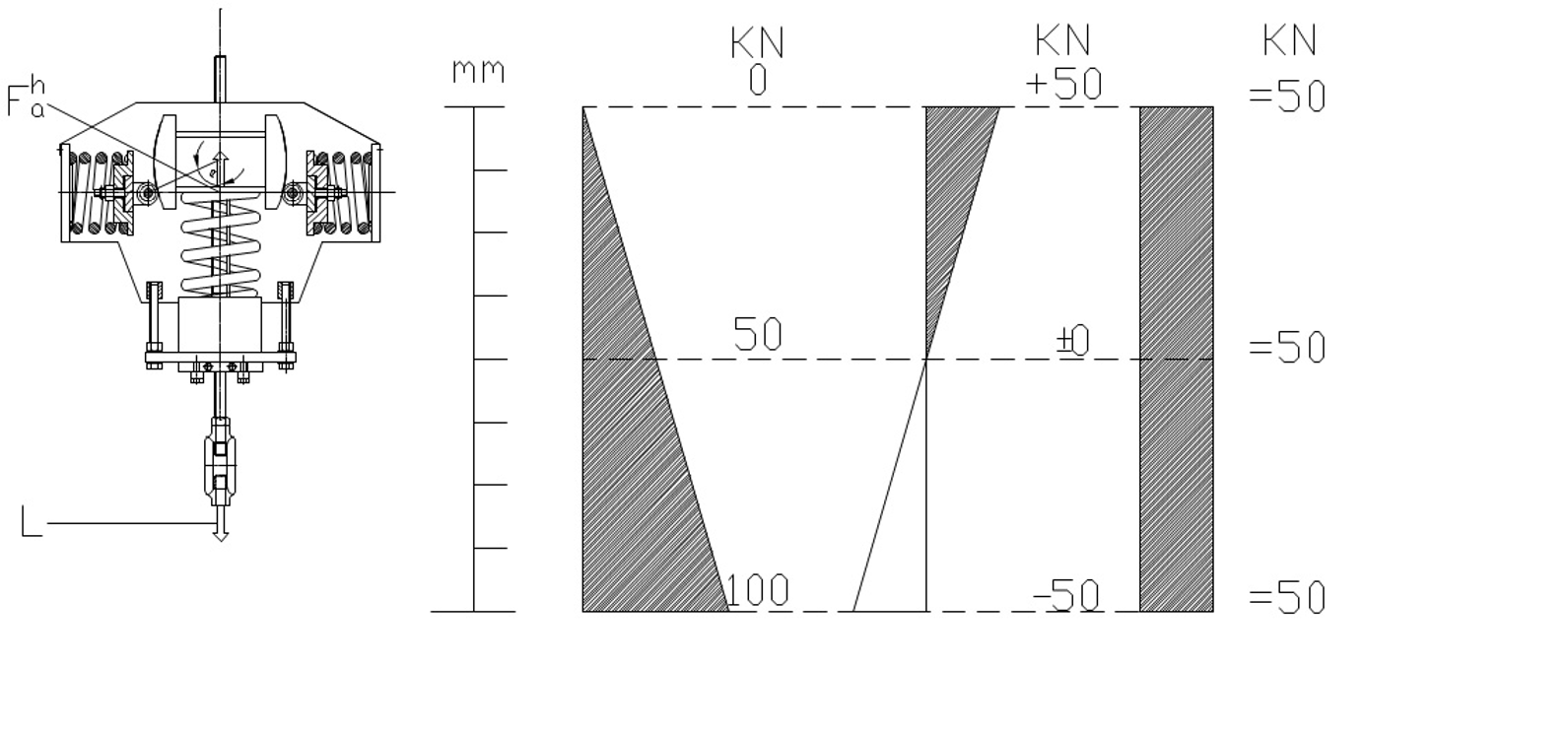

The diagram reads simply: over the full travel the main spring's force climbs linearly, the auxiliary group's vertical component falls by the same law, and their sum stays flat. On the test bench that translates to a measured deviation within 3% — and because the auxiliary springs also react sideways loads, the unit damps lateral vibration that a single-axis design passes straight into the pipe.
We build the conventional pattern too — see our lever-type constant hangers for general service where the standard 6% is sufficient.
Typical Specification
| Item | Range / Detail |
|---|---|
| Design practice | MSS SP-58; project specs on request |
| Load range | ~0.5 kN to 200+ kN per support |
| Travel | 25–300 mm typical |
| Load deviation | ≤3% bench-verified (MSS SP-58 limit: 6%) |
| Lateral damping | Auxiliary spring group, dual-axis |
| Testing | Load-travel bench test report per unit |
Where they are used
Main steam and hot reheat lines in power plants, high-temperature process lines, and any location where a variable hanger's load change would overload the pipe or connected equipment.
