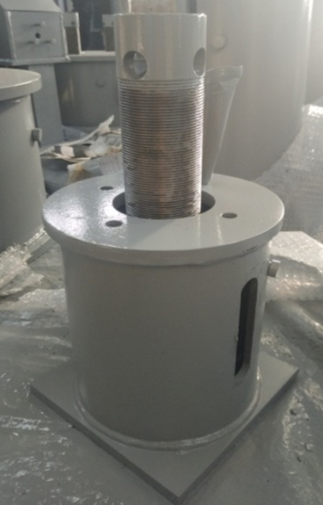

The workhorse spring support for general service piping — conventional welded casing, full sizing service, factory-direct pricing. Same engineering, friendlier budget.
Request a Quote
Not every line needs a premium casing. Utility piping, balance-of-plant systems and general process services move less, run cooler and forgive more — what they need is a correctly sized spring at the right price, delivered on schedule. That is this series.
| Item | Range / Detail |
|---|---|
| Design practice | MSS SP-58; project specs on request |
| Casing | Welded steel casing, conventional construction |
| Load range | ~0.2 kN to 100+ kN per support |
| Travel | Up to 50 mm |
| Material certs | On request |
Both series share the same sizing method and load envelope. The difference is the casing construction — and what it means over a decade in service:
| Criterion | Standard series (this page) | Seamless press-formed series |
|---|---|---|
| Casing | Rolled & welded | Press-formed, no welds |
| Weld HAZ near spring | Present — normal industry practice | None |
| Best for | General & utility service | Critical lines, coastal plants, long-life specs |
| Price | Economical | Premium |
For critical scope, see the seamless-casing variable spring hangers — or send the whole schedule and we quote both options tag by tag.
Functionally they share the same load and travel envelope and the same sizing service. The difference is the casing: the standard series uses a conventional welded casing at a lower price point, while the premium series uses a seamless press-formed casing with no welds near the spring — specified where long-term load accuracy on critical lines justifies it.
Hot load, travel with direction, pipe size and temperature, and the arrangement (hanger, base-mounted or trapeze). Send a hanger schedule or a simple list — we return a data sheet per tag.
Red-oxide primer as standard, epoxy systems or hot-dip galvanizing to project specification for coastal and outdoor service.
Yes — spring units can ship as complete assemblies with rods, turnbuckles, clamps and building attachments, consolidated with any other support hardware on the order.
A data sheet per tag, inspection reports, material certificates on request and full export packing documents. Travel stops are fitted for hydrotest as standard.
Send sizes, quantities and specs — quotation within 24 hours on working days.
