Range
- Strut channel 41×41 / 41×21, slotted and plain, pre-galvanized or HDG
- Channel nuts, fittings, brackets and pipe clamps with liners
- Threaded rod and hanging accessories
- Seismic bracing assemblies — cable and rigid brace systems

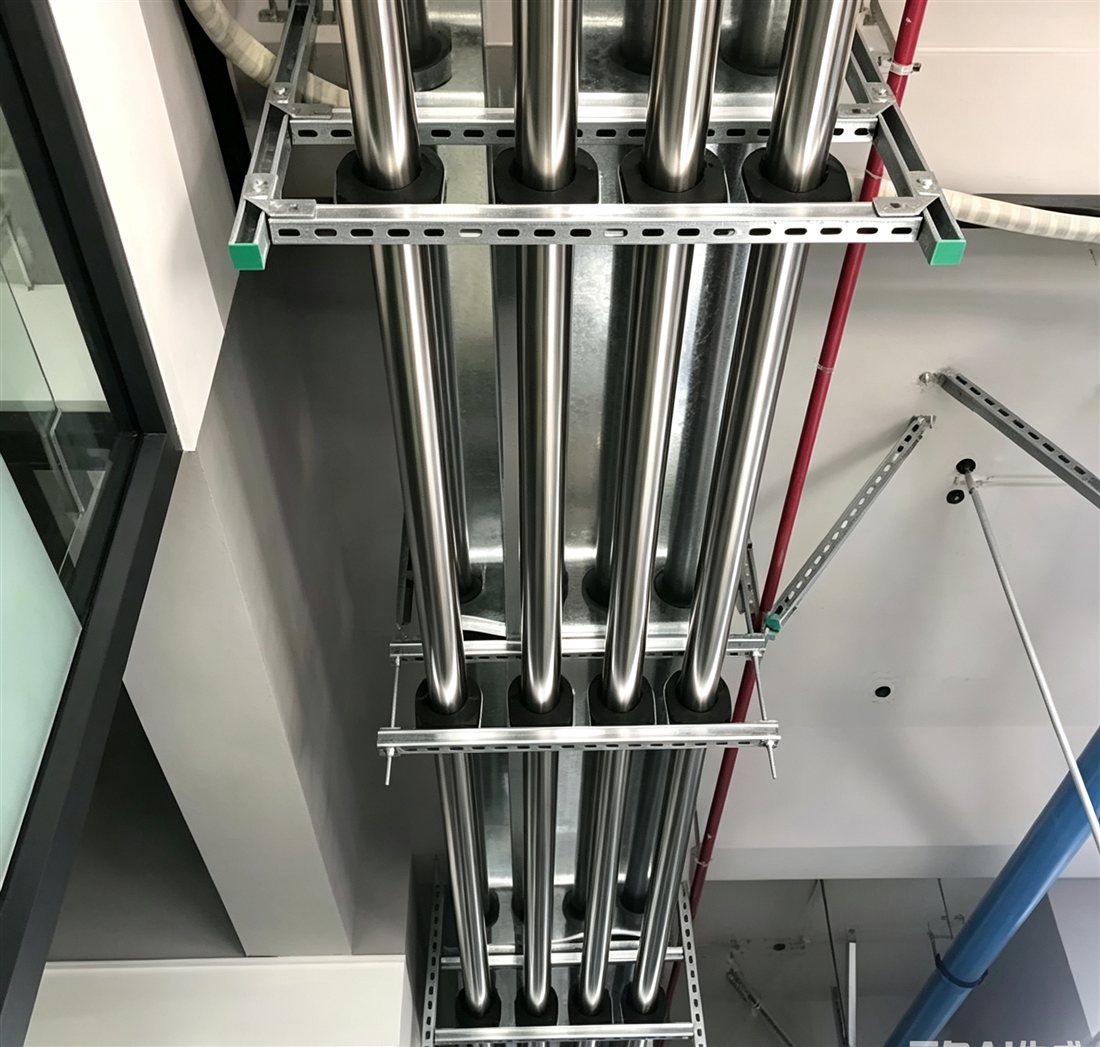

- Pre-assembled trapeze supports to your service drawings
Typical Specification
| Item | Range / Detail |
|---|---|
| Channel | 41×41, 41×21; 1.5 / 2.0 / 2.5 mm |
| Material | Pre-galvanized, HDG, stainless |
| Lengths | 3 m / 6 m stock, cut-to-length on request |
| Compatibility | Dimensionally interchangeable with common strut systems |
Ordering
For MEP packages we quote from your BOQ — channel plus fittings plus rod in one consolidated shipment, labeled per building or per level if your site logistics need it.
Engineering resources
Frequently asked questions
What information do you need to quote a strut and bracing package?
Your BOQ or service drawings: channel size and gauge, slotted or plain, finish, lengths, plus fittings, clamps and rod per service. For seismic bracing, tell us whether the design calls for cable or rigid braces and which services they restrain — we quote the package as one consolidated list.
Is your channel compatible with other strut systems?
Yes. The 41×41 and 41×21 profiles are dimensionally interchangeable with common strut systems, so channel nuts, fittings and brackets fit alongside hardware already on site. Wall thicknesses of 1.5, 2.0 and 2.5 mm are available, slotted or plain.
What materials and finishes are available?
Pre-galvanized channel for indoor MEP services, hot-dip galvanized for plant rooms, rooftops and coastal sites, and stainless where the environment or service demands it. Fittings and rod are supplied in matching finishes.
Do you supply pre-assembled supports, and is there a minimum order?
Yes — trapeze supports can be pre-assembled to your service drawings, and full packages ship as one consolidated container labeled per building or per level if your site logistics need it. Minimum order quantities are confirmed at quotation.
What documentation and packing are provided?
A packing list per bundle and pallet, material certificates on request, and the commercial documents your customs clearance requires. Channel ships strapped in bundles with fittings boxed by type, ready for direct distribution on site.
